A wheelchair-accessible through-floor lift
The Stiltz Trio Home Lift range offers our largest, most accessible through-floor lifts — designed to give wheelchair users full independence between floors.
With a wide, level-access cabin and fully automated doors, the Trio travels smoothly and quietly on its self-supporting structure. It plugs into a standard 13-amp power socket and needs no load-bearing wall, so installation is clean and discreet.
We’ve fitted Trio Home Lifts in homes across the UK, providing a long-term accessible living solution for families who need a little more space and comfort.
CALL US FREE ON
1800 000 0000Lines open Mon–Fri, 9am–5pm. Or use the buttons below to book your free home survey or request a callback.
Our largest home lift — built for full wheelchair accessibility without compromise.
Step-free, level-access cabin so wheelchair users can move between floors independently.

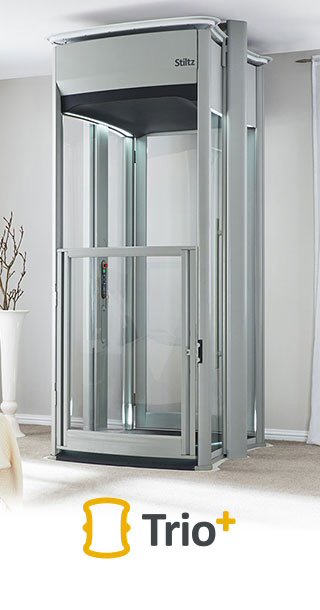

A generous 1,000 × 900 mm interior with plenty of room to manoeuvre.

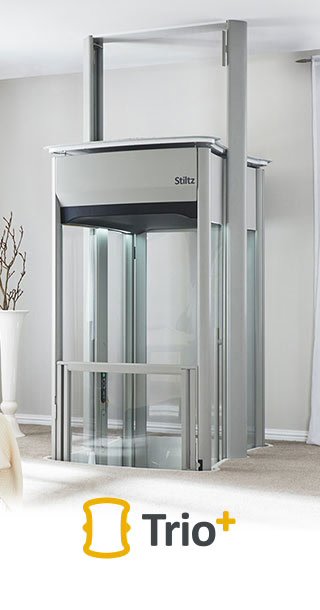

Hands-free, automatic doors make entering and exiting effortless.
Comfortably carries a wheelchair and passenger, or two people together.
Smooth, near-silent air-driven travel for a calm, reassuring ride.
Fitted in roughly a day with no structural building works required.
The Stiltz Trio+ is designed for wheelchair accessibility, with a generously sized 1,000 × 900 mm interior. Despite its larger capacity, it still fits without requiring structural alterations.
| Base Footprint | 1,100 × 1,000 mm |
| Shaft Height (per floor) | 2,300 mm min. |
| Car Interior | 1,000 × 900 mm |
| Door Width | 800 mm |
| Load Capacity | 300 kg / 2 persons |
Select a category below to explore the full technical specification.
| Maximum Load Capacity | 300 kg / 47 stone (2 people + wheelchair) |
| Lift Speed | 0.15 m/s |
| Shaft Dimensions | 1,100 mm × 1,000 mm |
| Car Interior Dimensions | 1,000 mm × 900 mm |
| Minimum Ceiling Height | 2,300 mm per floor |
| Floor Travel | Up to 3 floors (6 m travel) |
| Power Supply | 230 V / 50 Hz single phase |
| Drive System | Air-driven (no oil, no pit required) |
Specifications shown are for the Trio+ model. All measurements are approximate. Please refer to the full technical datasheet for exact specifications.
The perfect home lift for most properties. Compact, stylish and simple to install — usually in just one day.
Leave your details and a Stiltz expert will be in touch to answer your questions.
